武田機電
SKI-SDF流量計,SKI-SDF電磁流量計, SKI-SDF渦街式流量計,SKI-SDF傳感器,SKI-SDF差壓變送器.
德國SKI-SDF成立于1972年,流量計的專業(yè)制造商,產品有電磁式流量計,渦街式流量計,差壓式變壓器等,產品廣泛應用于石化行業(yè).
SDF Flow Sensors SDF flow sensors are highly accurate instruments which are used for measuring flow rates of gases, steam and liquids. SDF sensors are approved in inumerbale applications. They are suitable for highly sophisticated requirements. Application areas: Process measurements of nromal air, pressurized air, natural, combustion and other gases, even with extremely high temperatures (up to 1200°C) Steam measurements for pressures up to 180 bar and temperatures up to 560°C (->more) Flue gas flow measurement (even according to 17. BImSchG), especially for steam saturated gases, high dust loads, corrosive atmospheres etc. (->more) Flow measurements in liquids with medium or low viscosity Continuous measurements where no process interruption for assembly/disassembly is possible (->more) Essential features: Easy to install Low remaining pressure drop No moving parts High long term stability Nearly maintenance free Safe prevention of capillar action High stability against mechanical stress combined with low self-weight Measurement in both directions is possible Wide linearity range Wide scope of materials and therefore highest resistiveness against corrosion Error margin (apporved accuracy)): ±1% from the measured value - independent from wearout at the outside shape of the sensor Repeatability: ±0,1% Standard material: 316SS - optional materials are Hastelloy B and C in different variations, Monel, 1.4539, Inconel, alloy 625 u.v.a.m. Application ranges: pressure between 0..640 bar and temperature between -200..+1200°C

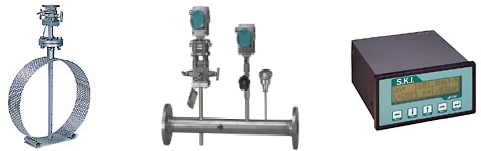

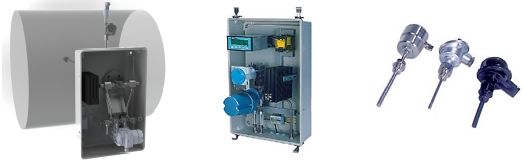

Products - An Overview SDF Flow Sensors AccuFlo μFLow compact computers Flow sensors for gaseous media, steam and liquids- for highest requirements, outstanding accuracy and reliability. AccuFlo measurements come ready for installation and with a certified calibration just for the flow conditions of your application. It provides best accuracy and dynamic ranges up to 1:40. Provide calculation of massflows, standardization of volume flow rates, totalizing and fulfilles all requirements around a flow measurement Thermosafe Air Purging Device Sensors / Transmitters Steam or gas measurement under free sky - even in arctic conditions the complete flow measurement remains operable. Purging of SDF flow sensors in extremely dust loaded flue flows (>200 mg/m3) Sensors for absolute, relative and differential pressure, temperature and level indication
SKI-SDF流量計,SKI-SDF流量計, SKI-SDF渦街式流量計,SKI-SDF傳感器,SKI-SDF差壓變送器.
