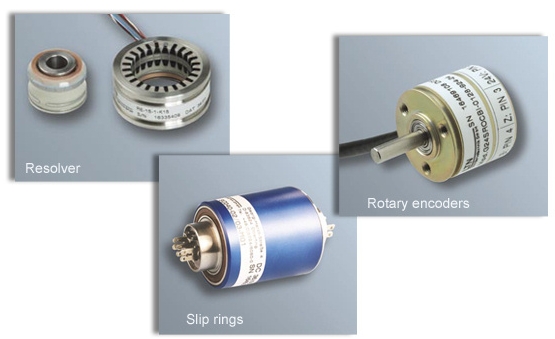

LTN產品有編碼器，分解器及集電環等。編碼器型號有G22, G38, G39, G60, G61 and G70等，分解器型號有RE-08,RE-10,RE-15,RE-27等。集電環型號有SM034 SM050 SM070 SM090 SM140 SD SC012 SC020 SC020-R SC040 SC080 SC100 SH085 SR085 SS036 Slipring request form。
LTN Rotary Encoders Attention: The previous types G22, G38, G39, G60, G61 and G70 are not manufactured any more. These were replaced with G24, G36, G58 and G71 with which the mechanical interface is identical and only the dimensions slightly can distinguish. Our product range contains of course a plenty of customized solutions as for example extended reference impulse, assemblies with slip rings as well as special dimensions. In addition, we offer solutions with which can be evaluated at the same time up to 8 independent traces. G24 Dimension: Outer ?: 24 mm Shaft ?: 4,5,6 mm or M6 thread Hollow shaft ? : 4 mm Specification: No. of increments: 512 max. Output signals: OC: 5...24 V TL: 5...24 V PP: 8...24 V LD (RS422): 5 V PDF download Short request for information G36 Dimension: Outer ?: 36.5 mm Shaft ?: 6.35 mm max. Hollow shaft ? : 8 mm max. Specification: No. of increments: 4096 max. Output signals: OC: 10...24 V TL: 10...24 V PP: 10...24 V LD (RS422): 5 V PDF download Short request for information G58 Dimension: Outer ?: 58 mm Shaft ?: 6 ... 10 mm max Hollow shaft ? : 6 ... 14 mm max. Specification: No. of increments: 2 ... 10 000 max. Output signals: PP: 8...24 V LD (RS422): 5 V PDF download Short request for information G71 Dimension: Outer ?: 71 mm Shaft ?: 12,7 mm max Hollow shaft ? : 12 mm max Specification: No. of increments: 10 000 max. Output signals: PP: 8...24 V LD (RS422): 5 V PDF download Short request for information G1B Dimension: Outer ?: 130 mm. Hollow shaft ? : 60 mm max Specification: No. of increments: 8192 max. Output signals: PP: 8...24 V LD (RS422): 5 V 1Vss





LTN Slip Rings More rings, higher voltage and current as indicated in the column below are possible for various models upon request. For your attantion : All our products do not contain mercury. LTN Servotechnik GmbH can only make recommendations as to the use of their products and makes no warranty as to the suitability of their products for any specific purpose. Final acceptance and approval of application is completely the responsibility of the purchaser. Our new feature for your comfort : Dear visitor, if you can't find a slipring which fits in your application, please use the Slipring-Request-Form. K32ST LWL Channels Specification Dimensions 1 Optic fiber 50μm-62,5μm Wavelength max. 1300nm / attenuation max. 4dB Prot. class: IP54 Outer ?: 32 mm L: 44,3 mm max. speed: 1200U/min PDF download Short request for information Modular: SM034 No. of Rings Specification Dimension 4 4 A 240 VAC prot. class IP00 Outer ?: 34mm Inner ?:12,7mm Length max.: 30 mm PDF download Short request for information Modular: SM050 No. of Rings Specification Dimension Signal: max. 24 Power: max. 12 Signal: 3A Power: 16 A 240 VAC prot. class IP00 Outer ?: 52 mm Inner ?: 32 mm Length max.: 128 mm PDF download Short request for information Modular: SM070 No. of Rings Specification Dimension Signal: max. 24 Power: max. 12 Signal: 3A Power: 16 A 240 VAC prot. class IP00 Outer ?: 72 mm Inner ?: 50 mm Length max.: 128 mm PDF download Short request for information Modular: SM090 No. of Rings Specification Dimension Signal: max. 24 Power: max. 12 Signal: 3A Power: 16 A 240 VAC prot. class IP00 Outer ?: 90 mm Inner ?: 75 mm Length max.:128 mm PDF download Short request for information Modular: SM140 No. of Rings Specification Dimension max. 12 10 A 240 VAC prot. class IP00 Outer ?: 140 mm Inner ?: 125 mm Length max.:130 mm PDF download Short request for information Disc: SD050 to SD286 No. of Rings Specification Dimension 4 to 24 1 A 60 VDC prot. class IP00 Outer ?: 50 mm to 286 mm Inner ?: 20 mm to 160 mm PDF download Short request for information Capsule: SC012 No. of Rings Specification Dimension 6 or 12 2 A 120 VDC prot. class IP40 (higher on request) Outer ?: 12 mm L max.:28 mm PDF download Short request for information Capsule: SC012-03 No. of Rings Specification Dimension 3 2 A 120 VDC prot. class IP40 (higher on request) Outer ?: 12 mm L max.:20,5 mm PDF download Short request for information Capsule: SC020 No. of Rings Specification Dimension 6 / 12 / 18 / 24 / 36 2 A with 1 ring 4 A with 2 rings 6 A with 3 rings 48VDC max., higher voltage on request prot. class IP51 (higher on request) Outer ?: 20 mm L max.: 72 mm Inner ? optional: 3 mm PDF download Short request for information Capsule: SC040 M-series No. of Rings Specification Dimension max. 5 e.g. 2x signal + 3x power 2 A per signalring 10 A per powerring 240V AC max. Outer ?: 40 mm L max.:70 mm housing: Alu blue anodized, prot. class IP54 (V2A and higher prot. class on request) flat pin connectors axial PDF download Short request for information Capsule: SC080 No. of Rings Specification Dimension Signal: max. 24 Power: max. 12 Signal: 3A Power: 16 A 240 VAC prot. class IP54 (higher on request) Outer ?: 80 mm Inner ?: 30 mm L max.: 170 mm PDF download Short request for information Capsule: SC100 No. of Rings Specification Dimension Signal: max. 24 Power: max. 12 Signal: 3A Power: 16 A 240 VAC prot. class IP54 (higher on request) Outer ?: 100 mm Inner ?: 50 mm L max.: 170 mm PDF download Short request for information Capsule: SH085 No. of Rings Specification Dimension 2 to 16 25 A 240 VAC prot. class IP00 (IP50 and IP64 on request) Outer ?: 85 mm Inner ?: 25 mm L max.: 207 mm PDF download Short request for information Capsule: SR085 No. of Rings Specification Dimension 2 to 16 25 A 240 VAC prot. class IP00 (IP50 and IP64 on request) Outer ?: 85 mm Inner ?: 25 mm L max.: 197 mm PDF download Short request for information Capsule: SS036 No. of Rings Specification Dimension max. 18 2 A 48 VDC prot. class IP53 (higher on request) Outer ?: 36,5 mm L max.: 48 mm

LTN Resolver Resolver size: RE-08 Dimensions: Hollow shaft ?: 4.0 mm max. Outer ?: 20.0 mm Length: 18.0 mm Specifications: Operation temp.: -55 oC...+155 oC Perm. Speed: 20000 1/min max. Accuracy: ±10‘ Accuracy ripple: 1‘ max. Rotor and stator completely impregnated 1 pole pair PDF download Short request for information Resolver size: RE-10 Dimensions: Hollow shaft ?: 6.0 mm max. Outer ?: 26.0 mm Length: 20.0 mm Specifications: Operation temp.: -55 oC...+155 oC Perm. Speed: 20000 1/min max. Accuracy: ±10‘ Accuracy ripple: 1‘ max. Rotor and stator completely impregnated 1 pole pair PDF download Short request for information Resolver size: RE-15 Dimensions: Hollow shaft ?: 12.0 mm max. Outer ?: 36.8 mm Length: 16.0 mm Specifications: Operation temp.: -55 oC...+155 oC Perm. Speed: 20000 1/min max. Accuracy: ± 4‘/± 6‘/±10‘ Accuracy ripple: 1‘ max. Rotor and stator completely impregnated 1/2/3/4 pole pairs PDF download Short request for information Resolver size: RE-21 Dimensions: Hollow shaft ?: 17.0 mm max. Outer ?: 52.4 mm Length: 26.0 mm Specifications: Operation temp.: -55 oC...+155 oC Perm. Speed: 20000 1/min max. Accuracy: ± 4‘/± 6‘/±10‘ Accuracy ripple: 1‘ max. Rotor and stator completely impregnated 1/2/3/4 pole pairs PDF download Short request for information Resolver size: RE-27 Dimensions: Hollow shaft ?: 30.0 mm max. Outer ?: 72 mm Length: 30.0 mm Specifications: Operation temp.: -55 oC...+155 oC Perm. Speed: 20000 1/min max. Accuracy: ± 4‘/± 6‘/±10‘ Accuracy ripple: 1‘ max. Rotor and stator completely impregnated 1/2/3/4 pole pairs PDF download Short request for information Resolver size: RE-35 Dimensions: Hollow shaft ?: 40.0 mm max. Outer ?: 90,0 mm Length: 40.0 mm Specifications: Operation temp.: -55 oC...+155 oC Perm. Speed: 5000 1/min max. Accuracy: ± 4‘/± 6‘/±10‘ Accuracy ripple: 1‘ max. Rotor and stator completely impregnated 1/2/3/4 pole pairs PDF download Short request for information Resolver size: RE-43 Dimensions: Hollow shaft ?: 65.0 mm max. Outer ?: 110 mm Length: 30.0 mm Specifications: Operation temp.: -55 oC...+155 oC Perm. Speed: 5000 1/min max. Accuracy: ± 4‘/± 6‘/±10‘ Accuracy ripple: 1‘ max. Rotor and stator completely impregnated 1/2/3/4 pole pairs PDF download Short request for information Resolver size: RE-165 Dimensions: Hollow shaft ?: 100.0 mm max. Outer ?: 165.0 mm Length: 35.0 mm Specifications: Operation temp.: -55 oC...+155 oC Perm. Speed: 5000 1/min max. Accuracy: ±10‘ Accuracy ripple: 1‘ max. Rotor and stator completely impregnated 1 - 9 pole pair PDF download Short request for information Capsuled Resolver: R58 Dimensions: Shaft ?: 12.0 mm max. Hollow shaft ?: 17.0 mm max. Outer ?: 58 mm Specifications: Operating temp.: -20 oC...+80 oC Permissible speed: 6,000 rpm Inside: Resolver size 15 PDF download Short request for information Capsuled Resolver: R71 Dimensions: Shaft ?: 12.0 mm max. Hollow shaft ?: 20.0 mm max. Outer ?: 71 mm Specifications: Operating temp.: -20 oC...+80 oC Permissible speed: 6,000 rpm Inside: Resolver size 21 PDF download Short request for information
